DH-350GS High Speed Automatic Rigid Box Machine, is the one of the most advanced fully auto box machines by our company. It is suitable to make various types of rigid boxes for mass production, such as jewelry boxes, mobilephone boxes, gift boxes, cosmetic boxes, watch boxes, slanting boxes,etc. and maximum Length 350mm, maximum width 250mm which covers a larger range compared to the previous machines and meets better the market. And it is upgraded also by its exterior with more safety and beauty.
DH-350GS adopts PLC and man-machine control, camera tracing system, and can automatically feed cover paper, feed grey board, paste four corners, spot grey board, lift box, wrap box, fold corner edges and form box.
The feeder, the gluer and the conveyor are driven by servo which has continuously variable transmission and enjoys high accuracy, easy adjusting, and less time consumption. Double color conveyor can avoid changing to other color belt, which is move convenience. The spot unit adopts the camera with 5 million pixel and robot arm to pick and spot the grey board, enhancing the spotting accuracy to ±0.05mm. The forming unit employs linear slider and virtual cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.
Features and function
1. Suit to all kinds of rigid boxes in mass production
2. Computer control with error auto stop and display (optional)
3. Auto error stop and display
4. Automatically feed paper and greybeard
5. 24-hours control for glue pre-heating
6.Wrapper can input 300 product formula
7. Automatically cut and heat tape to paste the greyboard box’s quad stayer (four corners), with independent man-machine control
8. Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm) (spotting inaccuracy ±0.01mm)
10. Wrapper can automatically and continually lift box, wrap paper, fold corner edge, fold in and form box
11. Automatic control system for glue viscosity(optional)
tec

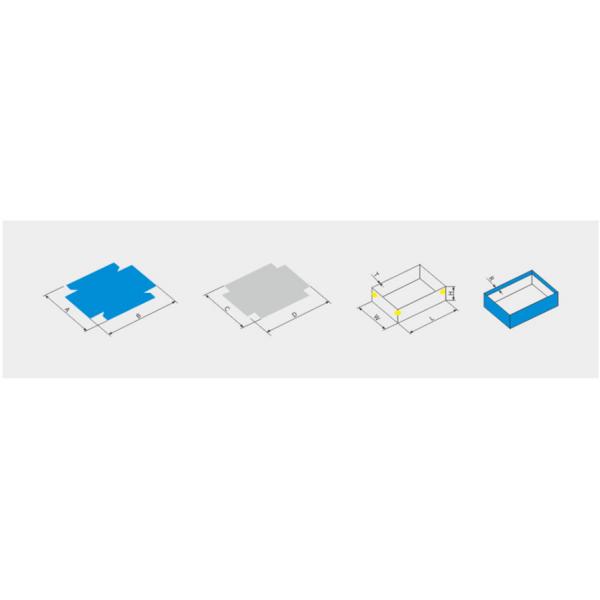

| Paper size(A B) | Amin | 50mm |
| Amax | 430mm |
| Bmin | 80mm |
| Bmax | 500mm |
| Paper thickness | 100-400g/㎡ |
| Cardboard thickness | 0.8-3mm |
| Finished product (carton) size(W*L*H) Highest and widest cannot be used at the same time | Wmin | 30mm |
| Wmax | 220mm |
| Lmin | 50mm |
| Lmax | 280mm |
| Hmin | 8mm |
| Hmax | 95mm |
| Fold-in edge size(R) | Rmin | 6mm |
| Rmax | 80mm |
| Position accuracy | ±0.10mm |
| Production speed | 35-48 sheets/min |
| Total power | 15.6KW/380V 3phase |
| Electric power | 5.1kw |
| weight | 4150kg |
| Machine size (L*W*H) | L800*W4200*H3200 |
The product is being upgraded at any time, the appearance is subject to the current machine!
